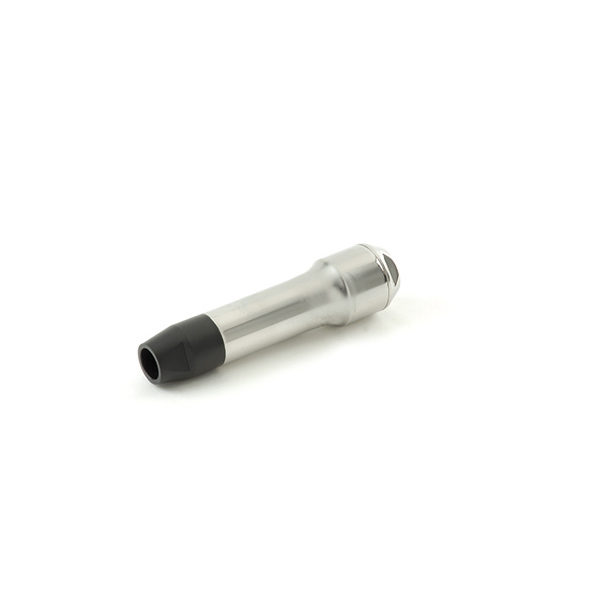

Socket
Art. 69957

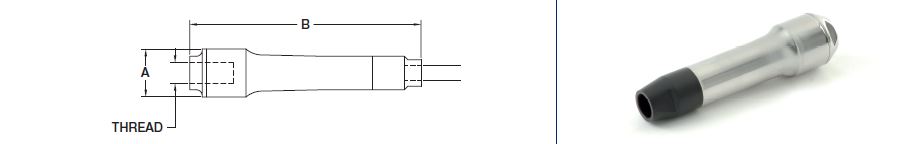

TECHNICAL DRAWING
OYS has developed a high strength, lightweight socket, which can be combined with any OYS end fitting to provide a solution to almost Kevlar® rigging problem. Custom designed Grand Prix terminals available upon request.
DATA TABLE
| PART NUMBER | SIZE | A | B | THREAD DIAMETER |
|---|---|---|---|---|
| KSBA-0030 | 3 | 19 | 78 | 7/16" - 20 UNF |
| KSBA-0050 | 5 | 23 | 95 | 1/2" - 20 UNF |
| KSBA-0070 | 7 | 28 | 103 | 5/8" - 20 UNF |
| KSBA-0090 | 9 | 32 | 115 | 3/4" - 18 UNF |
| KSBA-0120 | 12 | 34 | 134 | 3/4" - 16 UNF |
| KSBA-0150 | 15 | 39 | 166 | 7/8" - 14 UNF |
| KSBA-0200 | 20 | 44.5 | 187 | 1" - 12 UNF |
| KSBA-0250 | 25 | 50 | 217 | 11/8" - 12 UNF |
| KSBA-0350 | 35 | 60 | 261 | 11/4" - 12 UNF |
| KSBA-0450 | 45 | 68 | 284 | M42 X 3p |
| KSBA-0550 | 55 | 76 | 320 | M48 X 3p |
| KSBA-0650 | 65 | 83 | 341 | M52 X 3p |
| KSBA-0800 | 80 | 90 | 397 | M56 X 3p |
- All dimensions are expressed in millimetres (mm) unless otherwise stated.
- All dimensions have a +/- 0.25 tolerance unless otherwise stated.
- All data is subject to design change, these changes may take place without prior notification.
- Further information and details of larger sizes available upon request.
