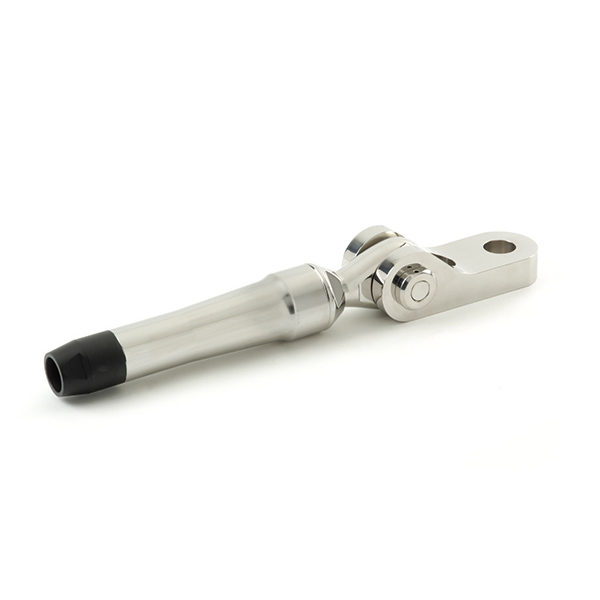

Asymmetric Toggle with Locking Clevis Pin
Art. 69982

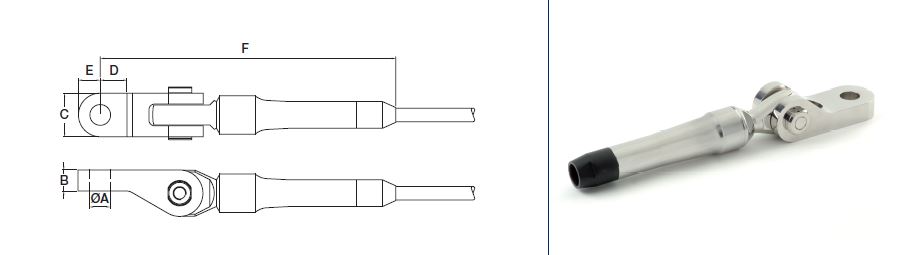

TECHNICAL DRAWING
Complete assembly consisting of a socket, marine eye and asymmetric toggle, supplied with a single Locking Clevis Pin Assembly (CLPLA), providing low fatigue attachment for fore and aft rigging. Can be supplied with a mast through bar and clamping top hat brushes. Designed to suit double shear pin.
DATA TABLE
| PART NUMBER | (Ø) A | B | C | D | E | F | BREAKLOAD TONNES |
|---|---|---|---|---|---|---|---|
| KASTLBA-0030 | 12.70 | 13.00 | 32.00 | 23.00 | 16.00 | 146.00 | 3 |
| KASTLBA-0050 | 12.70 | 13.00 | 32.00 | 23.00 | 16.00 | 184.00 | 5 |
| KASTLBA-0070 | 12.70 | 13.00 | 32.00 | 23.00 | 16.00 | 194.00 | 7 |
| KASTLBA-0090 | 15.88 | 16.00 | 36.00 | 25.00 | 18.00 | 220.00 | 9 |
| KASTLBA-0120 | 19.05 | 19.00 | 46.00 | 27.00 | 23.00 | 253.00 | 12 |
| KASTLBA-0150 | 22.25 | 22.00 | 50.00 | 33.00 | 25.00 | 304.00 | 15 |
| KASTLBA-0200 | 25.40 | 26.00 | 60.00 | 38.50 | 38.35 | 339.50 | 20 |
| KASTLBA-0250 | 28.58 | 29.00 | 60.00 | 37.00 | 30.00 | 379.00 | 25 |
| KASTLBA-0350 | 31.75 | 32.00 | 32.00 | 41.00 | 33.00 | 455.00 | 35 |
| KASTLBA-0450 | 34.93 | 35.00 | 80.00 | 56.00 | 40.00 | 514.00 | 45 |
| KASTLBA-0550 | 38.10 | 38.00 | unknown | unknown | unknown | unknown | 55 |
| KASTLBA-06550 | 44.45 | 45.00 | unknown | unknown | unknown | unknown | 65 |
| KASTLBA-0850 | 47.63 | 48.00 | unknown | unknown | unknown | unknown | 80 |
- All dimensions are expressed in millimetres (mm) unless otherwise stated.
- All dimensions have a +/- 0.25 tolerance unless otherwise stated.
- All data is subject to design change, these changes may take place without prior notification.
- Further information and details of larger sizes available upon request.
